該閥主要用于管路系統中，以防止管路系統超壓或維持管路的壓力，當泵關閉后還可以減少水錘沖擊。也可用于大型供水系統的水錘消除裝置，并且閥門控制系統的進口處裝有一個自清洗濾網，利用流體特性，使比重較大、直徑較大的懸浮顆粒不會進入控制系統，確保主閥的上游供水壓力某一設定值上使系統循環暢通無阻，該閥起閉靈敏、安全可靠、動作平穩、使用壽命長。

Use in a pipeline system to prevent it from surpassing pressure or keep the pressure of it．to reduce the water hammer＇s shock after the pump is closed and also and also used as a water hammer remover for a large water supply system．On the inlet of the valve＇s control system a self cleaning filter screen is placed，which，by means of the bigger specific gravity of the fluid，stops the suspension grains of a bigger specific gravity and diameter going into the sys-tern to ensure the main valve＇s water supply pressure at the upstream at a set value to get the system smoothly circulated without any resistance．This valve features sensitive open-close，safety，reliability，stable motion and long duration.

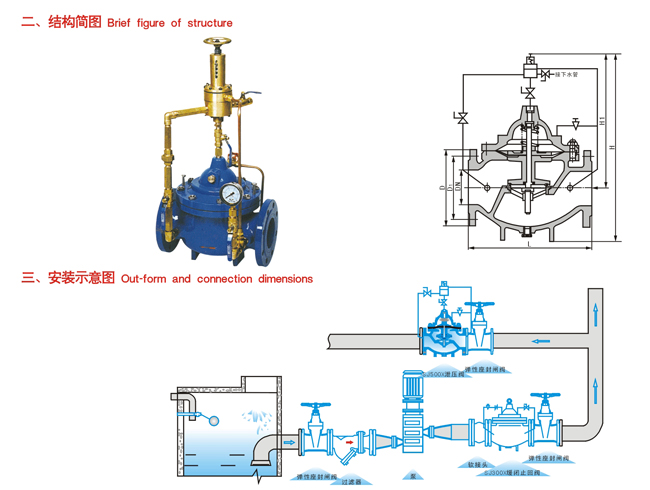

主要外形及連接尺寸 Schematic diagram of installation

公稱通徑 DN(mm)		20	25	32	40	50	65	80	100	125	150	200	250	300	350	400	450	500
L		180	180	180	203	203	216	241	292	330	356	495	622	698	787	914	978	978
PN10	D	105	115	135	145	160	180	195	215	245	280	335	390	440	500	565	615	670
PN10	D1	75	85	100	110	125	145	160	180	210	240	295	350	400	460	515	565	620
PN6	D	105	115	135	145	160	180	195	215	245	280	335	405	460	520	580	640	705
PN6	D1	75	85	100	110	125	145	160	180	210	240	295	355	410	470	525	585	650
PN25	D	105	110	135	145	160	180	195	230	270	300	360	425	485	550	610	660	730
PN25	D1	75	85	100	110	125	145	160	190	220	250	310	370	430	490	550	600	660
H		550	550	550	610	610	625	645	750	808	864	1135	1185	1325	1385	1445	1325	1430
H1		460	460	460	516	516	520	538	596	655	710	805	855	955	990	1030	905	960

注：安裝示意圖中彈性座封閘閥或蝶閥任選，建議≥ DN350選蝶閥。
Note：Either elastic seat ring sealed gate valve or butterfly valve can be selected in the schematic diagram of installation.Recomended to select the butterfly valve in case of≥DN350.
